SyrinTEC – 360° Corona Treatment of Syringes

Depending on the application, SyrinTEC provides internal or external corona treatment of PP and PE syringe barrels before printing or coating, improving adhesion on the treated surface.

SyrinTEC

Corona treatment of syringes

missing picture

SyrinTEC

Corona treatment of syringes

Request a quote

SyrinTEC product description

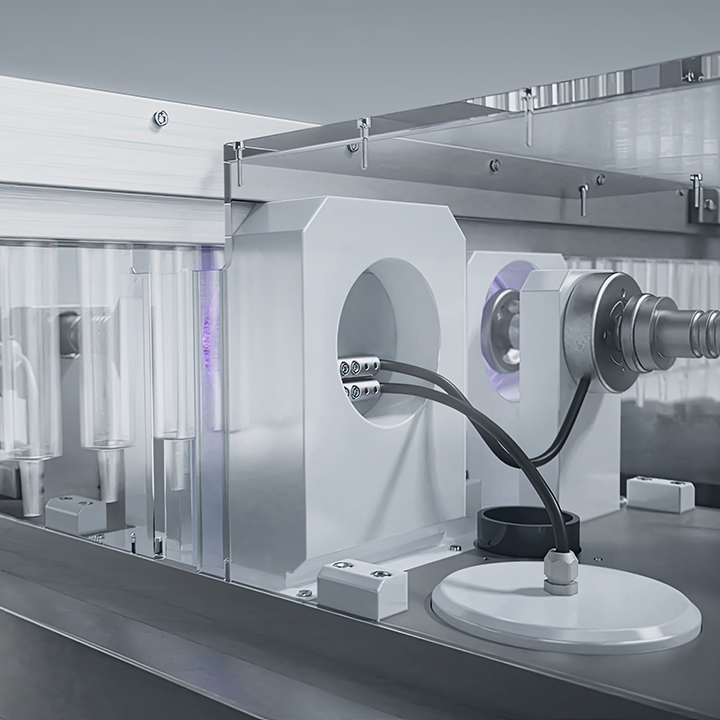

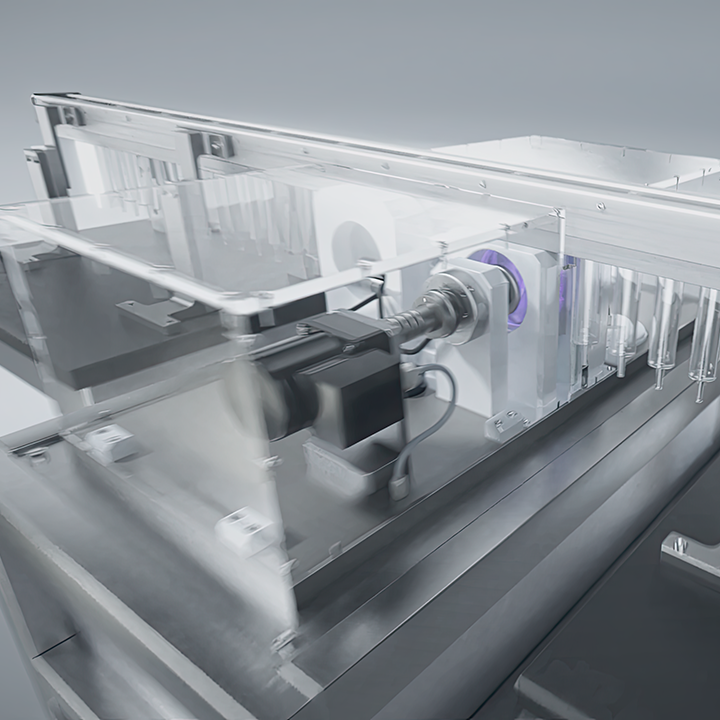

Outside Surface Treatment

SyrinTEC is specially designed for 360° Corona treatment of PP and PE syringe barrels.

Normally the SyrinTEC is built into the printing line and positioned as the final process before the barrels enter into the printing machine.

Using the SyrinTEC enables treatment of the entire outside surface without any inside treatment, which would increase friction on the inside barrel and cause the plunger to drag when used.

The purpose of surface treatment of polymer-based materials is to increase surface wettability through electrical discharge.

The low surface energy of polymer-based substrates often leads to poor adhesion of inks, glues and coatings.

To obtain optimum adhesion, it is necessary to increase the surface energy of the substrate to just above that of the material to be applied.

Surface treatment with corona results in improved surface adhesion properties.

SyrinTEC is specially designed for optimizing the adhesion properties of printing inks onto syringe barrels which are normally made of low surface energy polymer material such as PP, PE and others.

SyrinTEC uses highly durable ceramic electrode elements resulting in complete and uniform treatment of the syringe barrels.

The SyrinTEC is available both as a standard unit in a low and high speed configuration for integration into existing printing lines customised units are available for specific printing machines.

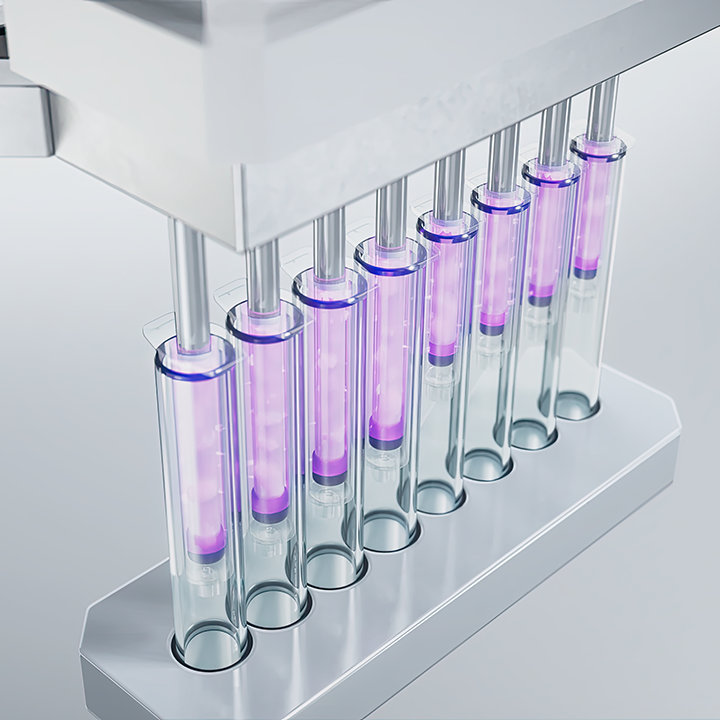

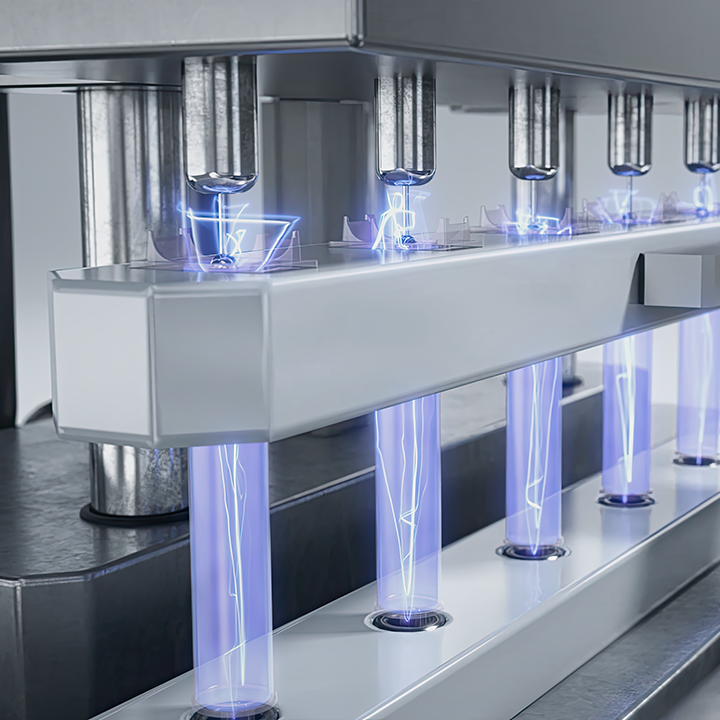

Inside Surface Treatment

Tantec also offers solutions with the ability to treat the inside of syringes.

The surface treatment effect on the inside of the syringe allows for better coating of the syringe interior to reduce friction when pushing and pulling the plunger.

Tantec can work with your production process and requirements to determine which style of corona treatment is best suited to meet your needs.

Cases

PFS news

Improved surface adhesion for COC and COP Prefilled Syringes

xxx technical specifications mangler

FEATURES:
Non-contact treatment	No need for electrodes to touch the part surface.
Treatment of parts	Various designs available depending upon part geometry.
Fully guarded treating station	Complete unit with all necessary safety precautions observed.
Touch panel	All parameters are displayed on the touch panel and are easily adjusted.
Uniform treatment levels	Rotating electrodes ensure a uniform treatment.
No need to change electrode height or set-up	Flexible design for multiple part treatment – no need to make adjustments.
Line speed up to 15 m/min	Keeps pace with existing production lines.
Patented design	RotoTEC-X electrode design offers optimized uniformity at treatment.

Technical Specifications	RotoTEC-X Corona treater
Mains voltage and frequency	230 VAC 50/60 Hz
Output voltage/plasma power	Max. 400 Vp/Max. 2000 Watt
Power supply	HV-X plasma generator series
Line speeds	0.5-15 m/min
Treatment sizes	Up to 100 mm high and 2000 mm wide
Treatment area	Single or dual sided treatment
Treatable plastic materials	PP, PE, PEEK, ABS, PC, PS and others (non-conductive only)
Transport system	Flat belt conveyor and o-ring belts
Control and connectivity	Complete touch panel. (Standard – Proface)
Regulation compliance	CE – RoHs – WEE

FAQ

What is SyrinTEC used for?

SyrinTEC is a corona treatment system for syringes and medical plastic components.

How does SyrinTEC work?

SyrinTEC uses corona treatment of syringe surfaces and inside areas.

Which materials or components can be used with SyrinTEC?

SyrinTEC is suitable for syringes, syringe barrels and medical plastic components. The final setup depends on the material, geometry and production requirements.

Can SyrinTEC be integrated into production?

Yes. SyrinTEC can be integrated into medical device production lines. This makes it suitable for both new production concepts and upgrades of existing processes.

How does SyrinTEC improve print adhesion?

SyrinTEC increases the surface wettability of the syringe barrel, creating better conditions for reliable ink adhesion.

Does outside treatment affect the inside of the syringe?

No. SyrinTEC treats only the outside surface, avoiding increased friction inside the syringe barrel.

What are the key advantages of SyrinTEC?

Key advantages include 360 degree outside treatment and inside corona treatment options. These features make SyrinTEC practical for industrial use where uptime, control and repeatability matter.

Can Tantec also treat the inside of syringes?

Yes. Tantec also offers inside corona treatment solutions for syringe barrels, for applications where improved coating or reduced plunger friction is required.

Is SyrinTEC an environmentally friendly solution?

Yes. SyrinTEC uses a dry electrical corona process and can reduce the need for chemical primers or additional pre-treatment where the application allows it.

Can SyrinTEC be delivered as a standard or customized solution?

SyrinTEC is a customized solution, tailored to match your syringe barrel, printing machine, line speed and production requirements.
