ZeroNOxTEC

Plasma Treatment with reduced NOx-emissions

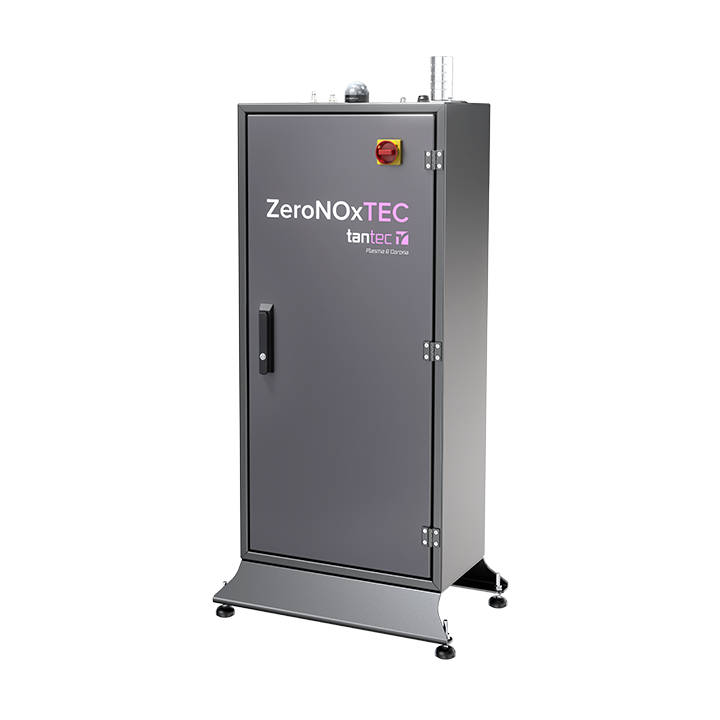

Front view of the enclosed ZeroNOxTEC NOx reduction system

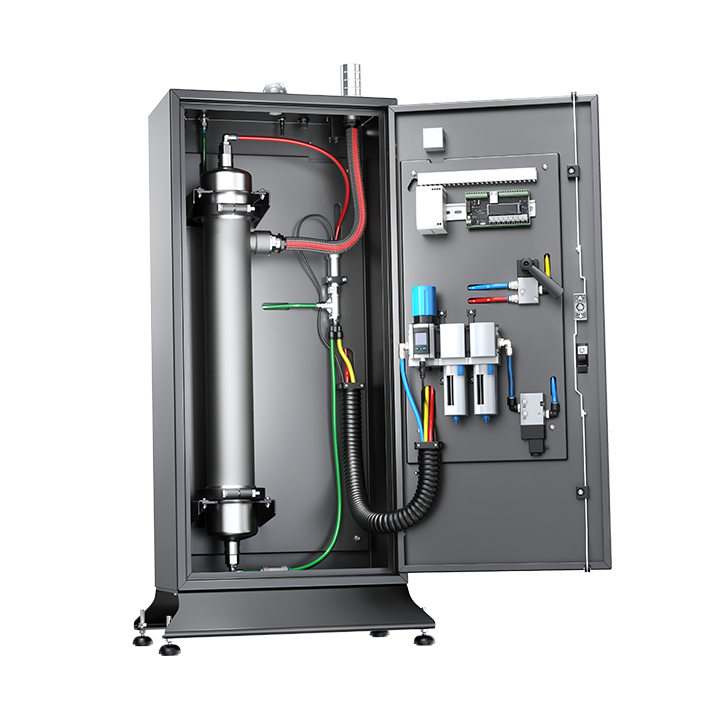

ZeroNOxTEC cabinet open, showing the membrane, pneumatic components and controller

ZeroNOxTEC
Plasma Treatment with reduced NOx-emissions

Request a quote

ZeroNOxTEC product description

Atmospheric plasma treatment has long been known as a versatile and effective method for improving material surfaces across various industries. However, one issue has been the generation of NOx emissions, which include nitrogen oxide, nitrogen dioxide and nitrogen trioxide.

The reduction and filtering of NOx emissions has traditionally been done by large and costly ventilation systems. The changes in environmental impacts are making it more important to find a new and better solution to reduce NOx emissions.

ZeroNOxTEC is an innovative solution in surface treatment, offering a revolutionary approach to reducing NOx emissions.

Developed to combat the emissions associated with plasma treatment, this technology has many benefits:

NOx emission prevention:

ZeroNOxTEC achieves an impressive 99% reduction in NOx emissions.

Improved treatment results:

By eliminating NOx emissions, ZeroNOxTEC improves the efficiency of plasma treatment. Resulting in better and wider surface treatment.

Extended shelf life:

Depending on the material being treated, ZeroNOxTEC extends the shelf life of treated products.

Plug and Play installation:

ZeroNOxTEC offers seamless integration and is a plug-and-play solution that simplifies implementation.

By reducing NOx emissions internally, ZeroNOxTEC reduces dependence on venting system, optimizing energy efficiency and reducing operational costs.

Equipped with complete monitoring features and visual indicators, ZeroNOxTEC provides real-time feedback, ensuring optimal performance and safe processing.

With its unrivaled ability to reduce NOx emissions and a range of benefits, this innovative technology sets a new standard for efficiency, sustainability and safety.

Jonas Service Tantec

Ask us a question

Standard ZeroNOxTEC

This product is manufactured as a standard machine to match common production requirements. It offers a proven configuration with defined footprint, treatment concept and machine interface, making it easy to integrate into industrial production.

Customized ZeroNOxTEC

This product can be customized to fit your production. Tantec can adapt the solution to your part geometry, process requirements and production flow, including footprint, cycle time, chamber size, part capacity and machine interface.

Video

ZeroNOxTEC technical specifications

Technical Specifications	ZeroNOxTEC
Main supply voltage and frequency	120 - 230 VAC (± 10%) 50 - 60 Hz (Universal power input)
Power	50VA
Dimension, mm (L x W x H)	280 x 500 x 1200 (1328 including feets)
Weight, kg	1 membrane: 74kg - 2 membranes: 75kg (Including feets)
Maximum number of Plasma systems per ZeroNOxTEC with one membrane	2 Plasma systems
Maximum number of Plasma systems per ZeroNOxTEC with two membranes	4 Plasma systems
Compressed air supply	Minimum 6 bar dry and clean (Tantec recommends 7 bar or higher)
Compressed air connection	OD 8 mm (Quick connection)
Air consumption, liter formaximum 2 Plasma systems	162 to 207 ltr/min
Air consumption, liter for maximum 4 Plasma systems	Air consumption, liter for maximum 4 Plasma systems
Mains cable length	300 mm

FAQ

What is ZeroNOxTEC used for?

ZeroNOxTEC is a solution designed to reduce NOx emissions during surface treatment.

How does ZeroNOxTEC work?

ZeroNOxTEC reduces NOx emissions directly inside the atmospheric plasma process, close to the source.

Can ZeroNOxTEC be integrated into production?

Yes. ZeroNOxTEC can be integrated with plasma treatment setups in industrial production. This makes it suitable for both new production concepts and upgrades of existing processes.

Why is ZeroNOxTEC needed?

Atmospheric plasma can generate NOx emissions, which normally require large ventilation or filtering systems.

What are the main benefits?

It reduces NOx emissions by up to 99%, supports a cleaner process and helps lower dependency on external ventilation.

Does ZeroNOxTEC improve the treatment process?

Yes. By reducing NOx emissions, ZeroNOxTEC supports a more stable and controlled plasma treatment process.

Is ZeroNOxTEC easy to install?

Yes. ZeroNOxTEC is designed as a plug-and-play solution for easy integration.

Is ZeroNOxTEC an environmentally friendly solution?

Yes. By reducing NOx emissions by up to 99%, ZeroNOxTEC supports a cleaner and more sustainable plasma treatment process.

Is ZeroNOxTEC available as both OEM and standard version?

Yes. ZeroNOxTEC is available as both an OEM solution for integration into existing systems and as a standard version for easier implementation.
