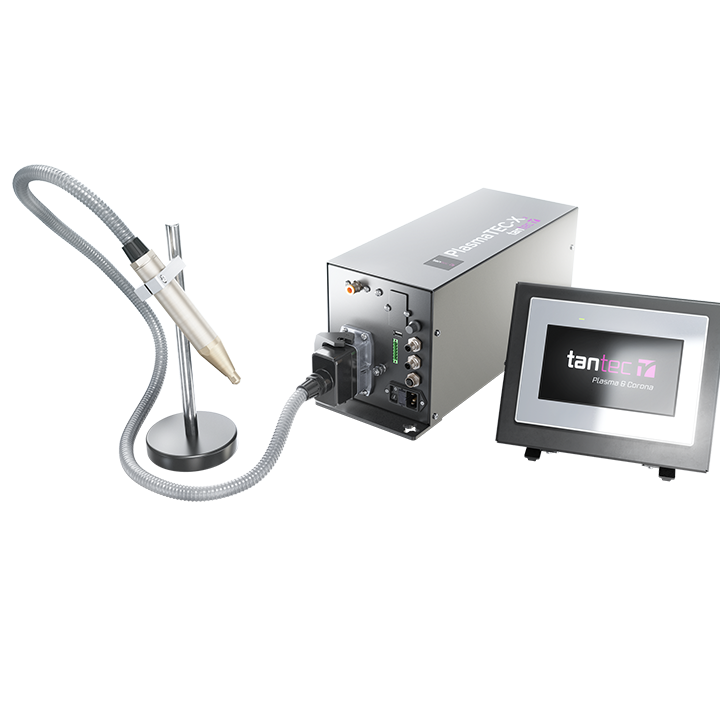

PlasmaTEC-X – Atmospheric Plasma Treatment

PlasmaTEC-X is a compact atmospheric plasma system for fast, uniform surface treatment. It integrates easily into production lines or robot cells and improves adhesion for gluing, printing, coating and painting in-line.

Tantec ProfileTEC open

ProfileTEC – Plasma Treatment of EPDM Profiles

ProfileTEC provides plasma treatment of automotive EPDM profiles before flocking or slip-coating. Customized with one or more treatment heads, it improves adhesion at line speeds of up to 40 m/min for better output.

Tantec RotoVAC front

RotoVAC – Vacuum Plasma Treatment in a Drum

RotoVAC treats small injection-moulded parts in a rotating drum inside a vacuum chamber. Rotation exposes the entire surface of every part, delivering consistent plasma treatment without jigs or complex handling systems.

Tantec SpinTEC front

SpinTEC – Rotary Atmospheric Plasma Treatment

SpinTEC uses two rotating PlasmaTEC-X nozzles for uniform atmospheric plasma treatment with minimal heat impact. Treatment width can be customized from 40–150 mm, with speeds of up to 10 m/min for reliable inline output.

Tantec SpinTEC30 side

SpinTEC30 – Compact Rotary Plasma Treatment

SpinTEC30 is a compact, lightweight rotary plasma system with a 30 mm treatment width. Its belt-free direct motor delivers adjustable speeds from 70–2800 rpm and working speeds of approximately 25 m/min with less upkeep.

Tantec VacuTEC5050 front open

VacuTEC – Fast and Uniform Vacuum Plasma

VacuTEC provides uniform vacuum plasma treatment of injection-moulded parts. Available with one or more trays, it improves adhesion before coating, gluing, painting and printing, with cycle times of 2–120 seconds.

Tantec VacuTEC2020 right open door

VacuTEC 2020 – Compact Vacuum Plasma Treater

VacuTEC 2020 is a compact vacuum plasma treater with a 200 x 200 mm tray. It delivers uniform treatment of injection-moulded parts and improves adhesion before coating, gluing, painting or printing with repeatable results.

Tantec VacuTEC5050 side

VacuTEC 5050 – Versatile Vacuum Plasma Treater

VacuTEC 5050 provides fast and uniform vacuum plasma treatment of injection-moulded parts. Its two shelves offer an effective treatment area of 500 x 500 mm, with standard and customized systems available on request.

VacuTEC 8080 Plasma etching

VacuTEC 8080 – Large Vacuum Plasma Treater

VacuTEC 8080 features an 800 × 800 mm treatment area and delivers fast, uniform vacuum plasma treatment. Standard or customized configurations improve adhesion before coating, gluing, painting and printing.

Peter marketing

VacuTEC 100100 – Large-Capacity Vacuum Plasma

VacuTEC 100100 features a 1000 × 1000 mm treatment area for uniform vacuum plasma treatment. Telescopic shelves simplify loading, while customized configurations adapt the system to your process.

VacuTEC COAD 1

VacuTEC+ COAD – Precision Plasma Coating

VacuTEC+ COAD combines vacuum plasma cleaning with precursor activation to create an ultra-thin reactive layer. It delivers strong, stable adhesion on challenging materials without solvents, chemicals or primer at scale.

Tantec VacuLINE side

VacuLINE – Automated Inline Vacuum Plasma

VacuLINE is a customized vacuum plasma system for fully automated inline production. It delivers fast, uniform and repeatable treatment of injection-moulded parts before coating, gluing, painting or printing every cycle.

Tantec OzoneTEC front

OzoneTEC – Internal Treatment of Hollow Parts

OzoneTEC treats the inside of hollow rotomoulded parts such as coolers, boats and jacket pipes. Ozone activates the inner surface before PUR foam injection, improving lasting adhesion, insulation and structural strength.

ZeroNOxTEC front

ZeroNOxTEC – Plasma Treatment with Less NOx

ZeroNOxTEC reduces NOx emissions from atmospheric plasma treatment by up to 99%. The plug-and-play system improves treatment width and efficiency, reduces ventilation demand and can extend treatment shelf life over time.

Tantec BottleTEC vertical electrodes open

BottleTEC – 360° Surface Treatment of Bottles

BottleTEC provides complete, uniform corona treatment of plastic bottles and cylindrical containers. It improves adhesion of labels, inks and coatings and integrates into high-speed production lines in your process.

Tantec CableTEC

CableTEC – 360° Corona Treatment of Cables

CableTEC provides high-speed corona treatment of cable insulation made from PE, PP, PTFE and other polymers. The inline system improves adhesion of printing inks and coatings at speeds up to 600 m/min.

Tantec FoamTEC front

FoamTEC – Corona Treatment of Foam and Board

FoamTEC delivers uniform corona treatment of foam and boards up to 50 mm thick. Available for single- or dual-sided treatment.

Tantec HV X

HV-X Series – Advanced Plasma Power Generators

The HV-X series powers corona and plasma surface treatment systems with outputs of 200, 1000 or 2000 W and 2–80 kV. It supports PLCs, RTU Modbus and bus connectivity for flexible integration into modern production lines.

LabelTEC

LabelTEC – Corona Treatment of Narrow Web

LabelTEC treats conductive and non-conductive narrow webs to improve adhesion of inks, glues and coatings. It provides single- or dual-sided corona treatment across widths of 100–500 mm at line speeds of up to 150 m/min.

Tantec LabTEC X side

LabTEC-X – Corona Treatment for Laboratories

LabTEC-X is a manual bench-top corona system for R&D, testing and proof-of-concept work. It treats small three-dimensional polymer parts and films, providing precise control in laboratory settings for reliable daily use.

NeedleTEC

NeedleTEC – Corona Treatment of Needle Hubs

NeedleTEC delivers inline corona treatment of plastic needle hubs to improve bonding and prevent leakage. It reaches recessed areas, supports high-speed assembly lines and can include electrode surveillance as an option.

Tantec PipeTEC front

PipeTEC – Internal Corona Treatment of Pipes

PipeTEC treats and cleans the entire inner surface of jacket pipes before PUR foam insulation. Integrated into extrusion lines, it improves adhesion, prevents air pockets and supports reliable pipe performance over time.

Tantec RotoTEC X front cover open

RotoTEC-X – Corona Treatment of 3D Parts

RotoTEC-X provides complete and uniform inline corona treatment of three-dimensional injection-moulded parts. Rotating electrodes improve adhesion before coating, printing, gluing or painting with precise output control.

Tantec SheetTEC side

SheetTEC – Corona Treatment of Sheets and Plates

SheetTEC provides single- or double-sided corona treatment of sheets and plates from 50–2000 mm wide. It improves adhesion and can be delivered as a stand-alone unit or integrated conveyor system for flexible production.

Tantec SpotTEC front

SpotTEC – Flexible Corona Treatment of 3D Parts

SpotTEC uses low-frequency discharge for targeted corona treatment of profiles, cables and moulded plastic parts. Its compact electrode head integrates easily into production lines without a counter electrode on demand.

SyrinTEC inside 1 1 e1692794898784

SyrinTEC – 360° Corona Treatment of Syringes

Depending on the application, SyrinTEC provides internal or external corona treatment of PP and PE syringe barrels before printing or coating, improving adhesion on the treated surface.

LabTEC-X

Corona Lab System

Tantec LabTEC X side

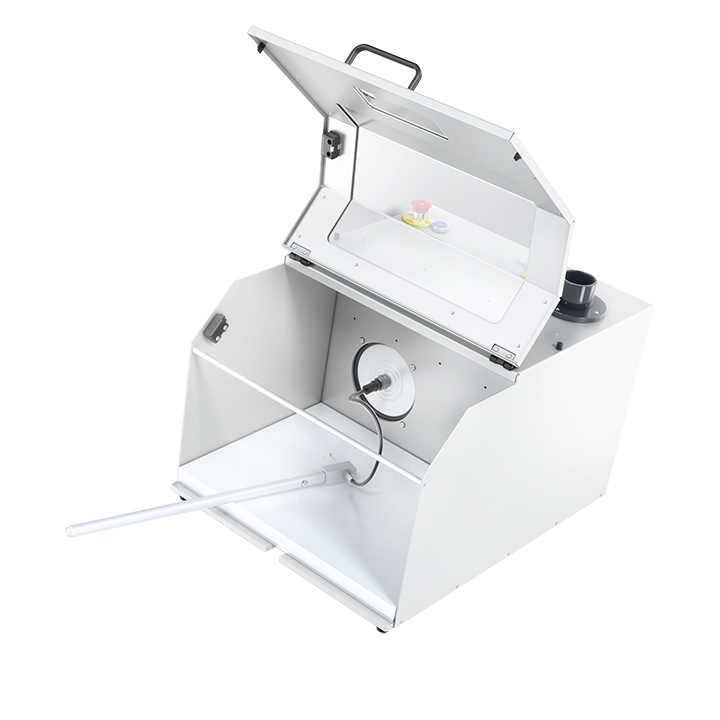

Tantec LabTEC X open

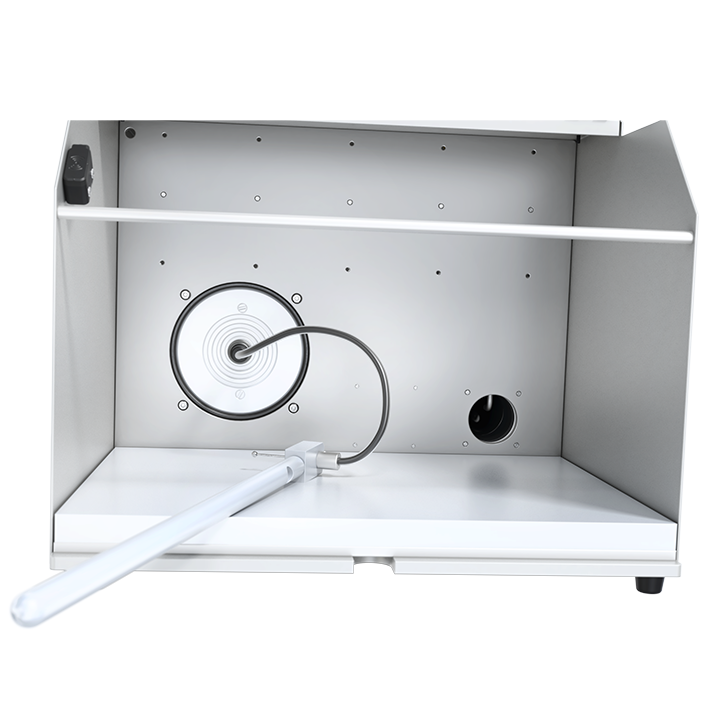

Tantec LabTEC X front open

LabTEC-X

Corona Lab System

Request a quote

LabTEC-X product description

LabTEC-X is a corona system that has been adapted for use in a laboratory setting. The generator provided with this system has been adapted to provide tighter control as the system is used as a test device. The system is strictly manual to ensure that this will be a safe addition to any laboratory. You can easily treat a variety of parts by holding the insulated handle of the electrode.

Adhesive bonding and finishing of moulded and extruded parts made of polyethylene, polypropylene, TPO and EPDM are constant manufacturing problems. Medical laboratory products made of polystyrene have poor wettability and poor cell attatchment.

Corona surface treatment is a modification of polymer surfaces with electrical discharge at atmospheric pressure.

The corona process creates the necessary polar functional groups on the polymer surface, which promote adhesion and wettability. Tantec’s bench top LabTEC-X is specially designed for treatment of small polymer parts.

This includes both three-dimensional parts and films. The LabTEC-X is specially configured for R&D lab and proof of concept work. This system consists of a high-frequency power generator and a treating station with high-voltage transformer integrated into the station. The high-voltage transformer steps up the output signal from the generator to produce the high frequency.

Comes as a package
The unit is a complete package: Generator, remote control, cables, LAB station, ball and wire electrode. Transformer type is HT-X01-28: 28 kW.

A ceramic electrode is available as an option.

Cases

NeedleTEC

High tensile strength after plasma treatment of Needle Hubs

FAQ

What is LabTEC-X used for?

LabTEC-X is used for laboratory testing and corona treatment of small polymer parts, films and 3D components.

Why use LabTEC-X in a laboratory?

LabTEC-X makes it possible to test and validate surface treatment before moving into full-scale production.

Which materials can LabTEC-X treat?

LabTEC-X can treat materials such as polyethylene, polypropylene, TPO, EPDM, polystyrene and other polymer materials.

How does LabTEC-X improve adhesion?

LabTEC-X modifies the polymer surface with corona discharge, creating better conditions for adhesion, bonding and wettability.

Can LabTEC-X be used for R&D?

Yes. LabTEC-X is specially configured for R&D, laboratory testing and proof-of-concept work.

Can LabTEC-X treat 3D parts?

Yes. LabTEC-X is designed for small polymer parts, including both three-dimensional components and films.

Is LabTEC-X a manual system?

Yes. LabTEC-X is a manual bench-top system where the operator treats the part using an insulated electrode handle.

Can LabTEC-X be delivered as a standard or customized solution?

LabTEC-X is a standard complete laboratory package, with optional electrode configurations for different materials, part geometries and test requirements.
