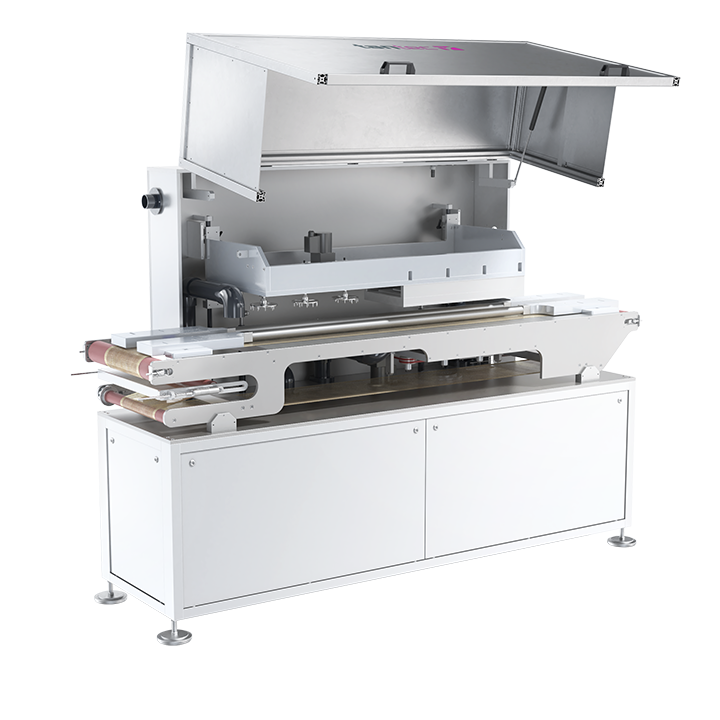

Tantec BottleTEC horisontal electrodes open front

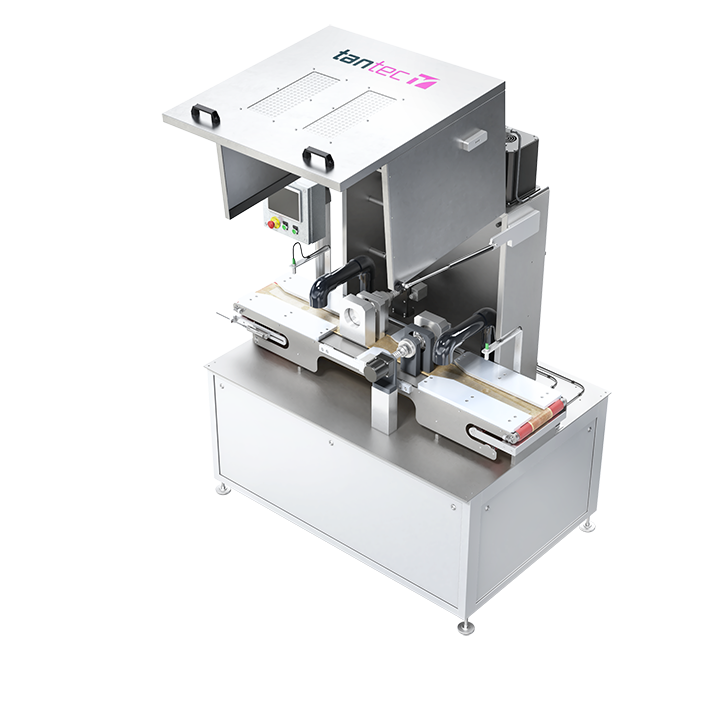

Tantec BottleTEC vertical electrodes open

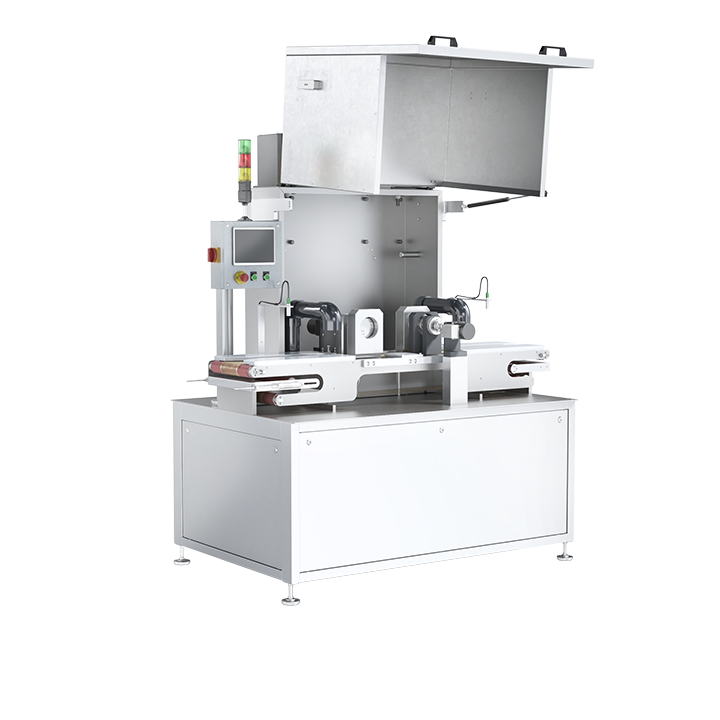

Tantec BottleTEC vertical electrodes open side

BottleTEC

Plastic products treated with Corona Treatment

Request a quote

BottleTEC product description

The importance of making the final packaging for a product look professional is an increasing trend at many bottle manufacturers. Manufacturers are focused on branding more than ever. Bottle manufactures do not want their labels to fall off the bottle or have logos printed poorly resulting in the product looking low end or poorly made. This can happen because the surface of the bottle has not been surface treated.

When bottle makers face label, coating and ink adhesion challenges corona surface treaters are often used to increase the adhesive strength. Bottle adhesion problems occur because many of the container materials used in the packaging are chemically inert.

Bottle coating ensures that labels are not peeled off until complete destruction of the label occurs. Surface treatment activates surfaces to create bonding sites to enable successful adhesion.

In simple terms, Surface Treatment (etching) is the preparation of a plastic surface to allow maximum adhesion between the plastic and other materials such as glue, inks, or coatings. Without this step in the production process the imprinted ink will run off and certain types of labels won’t stick.

Tantec’s BottleTEC system sets new standards for corona treatment technology. It is possible to surface treat PE, PET, PP, PC, PEEK, ABS, PS and other cylindrical containers in high-speed molding, printing, filling or labeling production lines. Bottles quickly rotate through the system receiving 360° of treatment.

This universal BottleTEC system developed by Tantec operates with patented rotating electrode elements resulting in complete and uniform treatment of parts. These self-contained units can be installed within existing production lines or used as an off-line treating process.

Corona Treatment of bottles is considered an environmentally friendly process which has low operation cost. With Corona surface treatment you achieve great savings on adhesive materials, inks, coatings, and e.g. primer.

The BottleTEC Surface Treatment System features:

Surface treatment of various shaped bottles
Keeps pace with existing production lines.
Treating levels up to 72 mN/m (dyne/cm) – depending on the application.
Non-contact treatment
BottleTEC electrodes ensure a uniform treatment
Flexible design – no need to adjust
Surface treating of empty and filled bottles (depending on application)
Various design available depending upon part geometry
Easy maintenance

Video

BottleTEC technical specifications

This product is custom-engineered to meet the specific requirements of each application and therefore has no fixed technical specifications. For further information and guidance, please contact our sales team at sales@tantec.com.

FAQ

What is BottleTEC used for?

BottleTEC is used for surface treatment of plastic bottles and cylindrical containers before labeling, printing, coating or bonding.

Why is surface treatment needed on plastic bottles?

Many plastic materials have low surface energy, which can make labels, ink or coatings difficult to bond properly. BottleTEC activates the surface to improve adhesion.

How does BottleTEC improve label adhesion?

BottleTEC treats the bottle surface to create better bonding conditions, helping labels stay firmly attached and reducing the risk of peeling.

Can BottleTEC be used for printing applications?

Yes. BottleTEC improves the surface before printing, helping inks bond more reliably to the plastic surface.

Which materials can BottleTEC treat?

BottleTEC can be used for materials such as PE, PET, PP, PC, PEEK, ABS, PS and other plastic containers, depending on the application.

Does BottleTEC treat the full bottle surface?

Depending on the system, BottleTEC can treat selected areas or the full 360° bottle surface for uniform activation.

Can BottleTEC be used for printing applications?

Yes. BottleTEC improves the surface before printing, helping inks bond more reliably to the plastic surface.

How does BottleTEC improve label adhesion?

BottleTEC treats the bottle surface to create better bonding conditions, helping labels stay firmly attached and reducing the risk of peeling.

Is BottleTEC an environmentally friendly solution?

Yes. Corona surface treatment is a dry process with low operating costs and can help reduce the need for primers, adhesives, inks or coatings where the application allows it.

Is BottleTEC available as a standard or customized solution?

Yes. Tantec offers BottleTEC in different configurations depending on bottle shape, material, production setup and treatment requirements.
