VacuTEC 100100

Vacuum Plasma Treater

missing picture

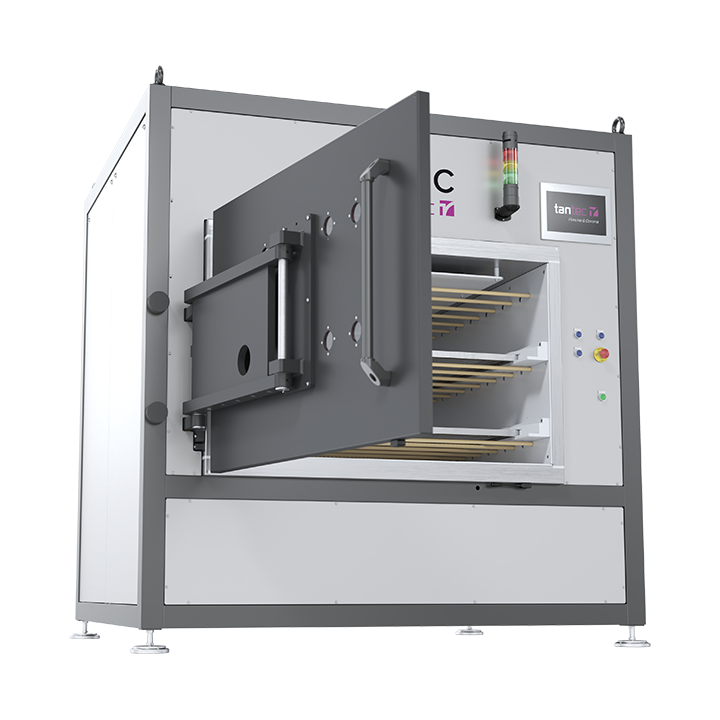

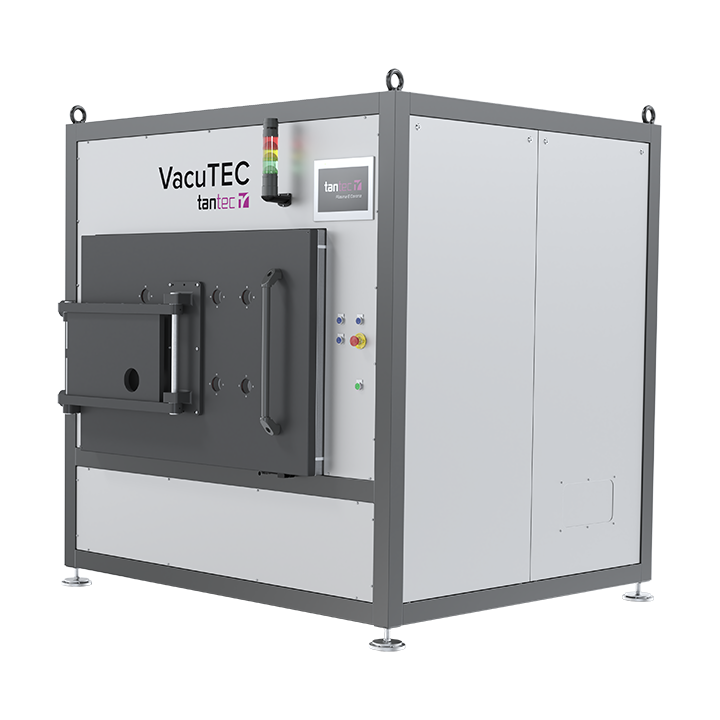

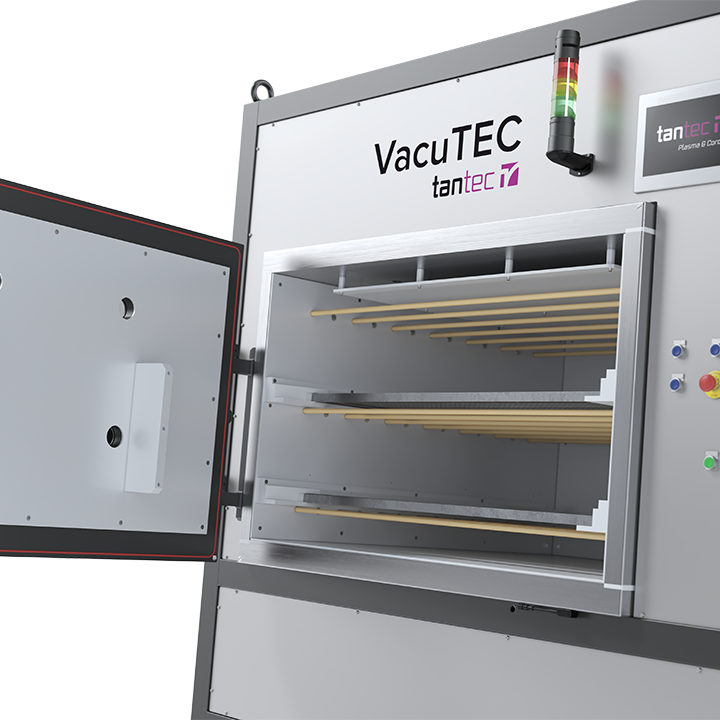

VacuTEC 100100

Vacuum Plasma Treater

Request a quote

VacuTEC100100 product description

Standard VacuTEC system with customized chamber sizes. There are so many possibilities. Tantec has both standard VacuTEC machines, but also custom-designed machines. The VacuTEC customized machines are specially developed and adapted 100% to customer wishes and requirements in relation to the production line.

Tantecs VacuTEC Series Plasma Treater is designed for treatment of a large number of different injection moulded parts. The

VacuTEC offers very fast treatment times and optimum adhesion properties for downstream coating, gluing, painting and printing applications. In the treating chamber a vacuum is built up to between 0,1 and 3 mbar before an electrical discharge is created through the integrated plasma electrode.

Treatment cycle times are often short, between 5 – 60 seconds depending on the material and its formulation. VacuTEC uses the advanced Tantec power generator HV-X series as power supply and specially designed plasma transformer to provide voltage to the plasma electrodes.

Cases

Look Tantec front

Improved adhesion for one of the largest manufacturers of ski bindings

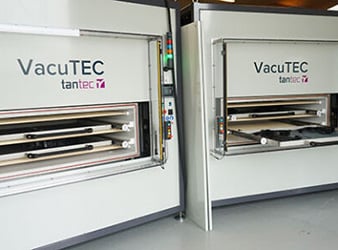

VacuTEC vacuum

Excellent reliability was the key difference in new investments of Tantec’s solution

VacuTEC100100 technical specifications

Technical Specifications	VacuTEC 100100 \| Vacuum Plasma Treater
Output voltage/plasma power	5kV / 2000 W
Power source	HV-X20 generator
Compressed air inlet	6 bar dry & clean
Treatment gas	Standard air, (option oxygen, argon, nitrogen on request)
Vacuum pump capacity	2 x 300 m³/hour (recomended), others on requset.
Vacuum level	0,1 – 3 mbar
Evacuation time, typical	From 40 sec, depending on pump.
Plasma treatment time, typical	From 20 seconds, depending on material
Electrical Controls	Tantec HMI touch panel.
Regulation compliance	CE – RoHS – WEEE
Chamber volume	1425 Liter
Treating volume	2 x 250 Liter
Tray size	1000 x 1000 x 250 mm
Shelves	2
Pump placement	Standard behind, (option on top of VacuTEC)
Dimensions (W x D x H)	1990 x 1700 x 2165 mm

FAQ

Her mangler en kreativ tekst fra vores marketings afdeling

What is VacuTEC 100100 used for?

VacuTEC 100100 is used for vacuum plasma treatment of very large components or high-volume batches before coating, gluing, painting or printing.

How large is the treatment area in VacuTEC 100100?

VacuTEC 100100 has two shelves, each with a tray size of 1000 x 1000 mm. This provides generous space for larger parts and higher batch capacity, while the shelf design makes loading and unloading easier in production.

How does VacuTEC 100100 differ from VacuTEC 8080?

VacuTEC 100100 offers a larger chamber volume and tray size than VacuTEC 8080. It is designed for applications where part dimensions, fixtures or production volume require the extra space.

What vacuum level does VacuTEC 100100 use?

The plasma discharge is active from 0.1-3 mbar depending on the application. The chamber process creates controlled conditions for uniform surface treatment.

What power setup is used in VacuTEC 100100?

VacuTEC 100100 uses an HV-X20 generator with 5 kV / 2000 W output. The system is designed to support plasma treatment across a large chamber volume.

What are typical process times for VacuTEC 100100?

Evacuation time starts from around 40 seconds depending on pump configuration, and plasma treatment time starts from around 20 seconds depending on material and application.

Can VacuTEC 100100 treat multiple parts in one batch?

Yes. The large chamber and two-shelf design make it possible to treat larger batches or bigger components in one cycle, depending on fixtures and part layout.

When should a company choose VacuTEC 100100?

Choose VacuTEC 100100 when smaller chambers limit throughput, part size or fixture design. It is especially relevant for production environments with large components and demanding adhesion requirements.

Is VacuTEC 100100 an environmentally friendly solution?

Yes. VacuTEC 100100 is a dry vacuum plasma process and can often use standard air as process gas. It may reduce the need for primers, solvents or chemical pre-treatment in suitable applications.

Can VacuTEC 100100 be customized?
