VacuTEC 5050

Vacuum Plasma Treater

Front view of the VacuTEC 5050 vacuum plasma treater with the chamber closed

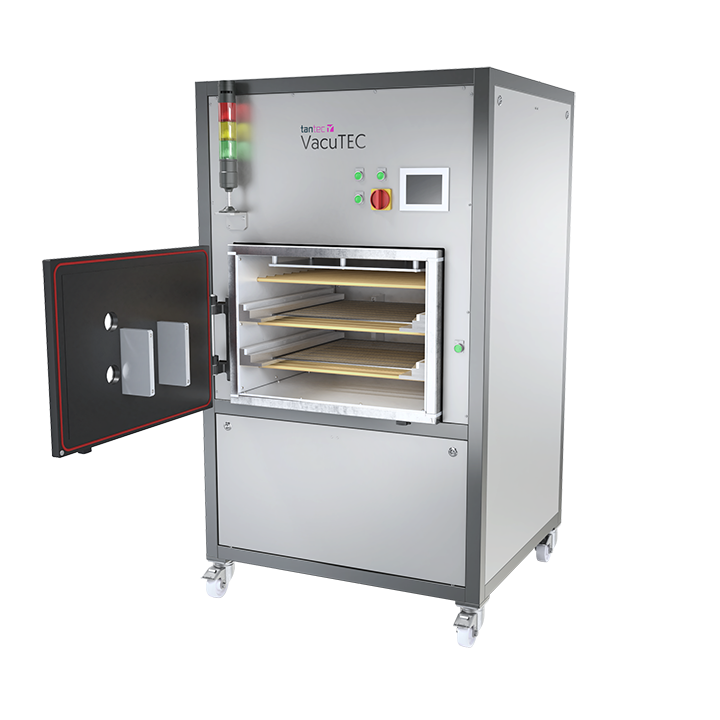

Front view of VacuTEC 5050 with the chamber open and treatment shelves visible

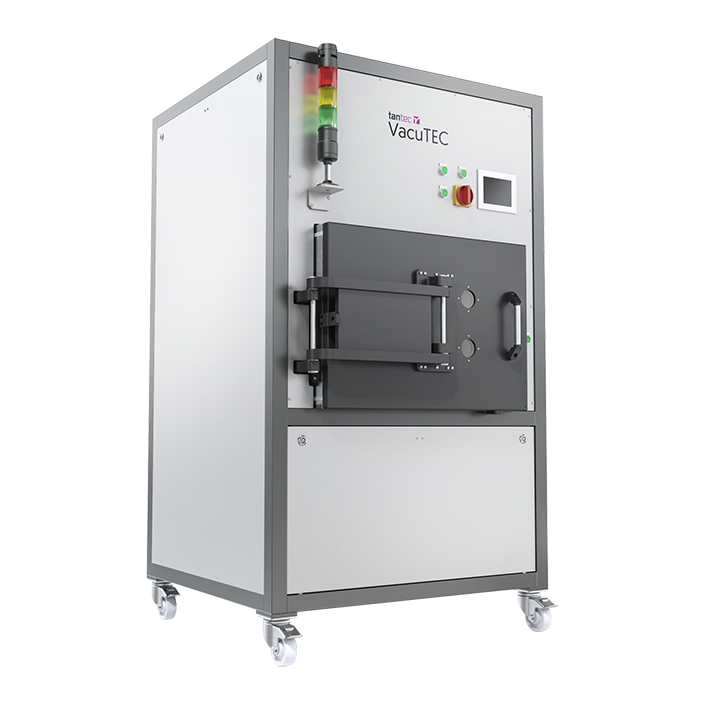

Three-quarter side view of the VacuTEC 5050 vacuum plasma treater

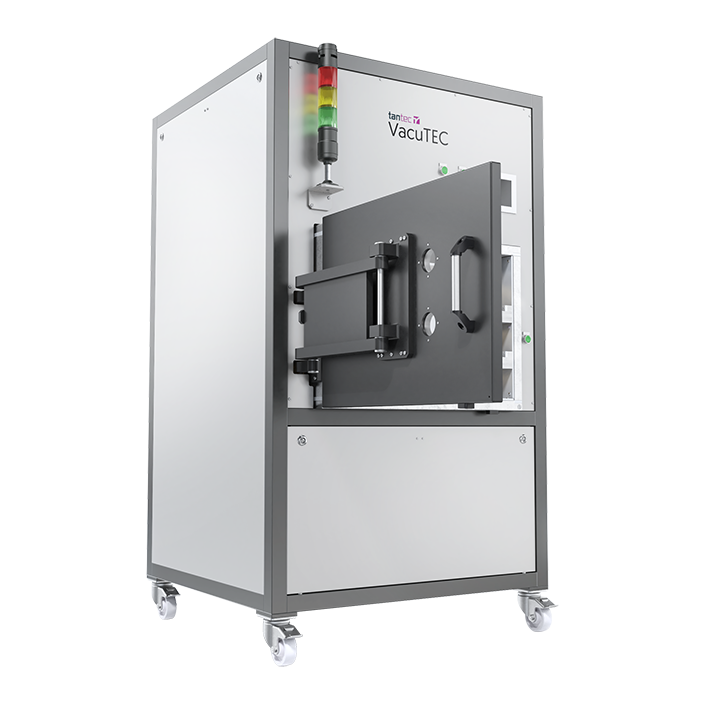

Side view of VacuTEC 5050 with the chamber door open

VacuTEC 5050
Vacuum Plasma Treater

Request a quote

VacuTEC 5050 product description

Tantec RotoTEC-X is used for in-line treatment of injection molded parts prior to coating, printing, gluing, painting, etc. Often the RotoTEC-X is also used simply for optimizing adhesion properties of a given substrate.

The RotoTEC-X ensures a very uniform treatment process and offers the user full process control of all parameters.

The RotoTEC-X corona treater offers a cost-effective method for optimizing the adhesion properties of printing inks, coatings, glue, and paint on any surface made of polymer material including the commonly used polypropylene and polyethylene. RotoTEC-X can thus be used for treating plastic materials and plastic products.

This universal system developed by Tantec operates with patented rotating electrode elements resulting in complete and uniform treatment of parts. These self-contained units can be installed within existing production lines or used as an off-line treating process.

The system includes a high- frequency generator, high-voltage transformer, rotary electrodes, ozone filter, and customized stand-alone or bench-top treating station. Both standard and customized RotoTEC-X stations are available for both single and dual-sided treatment.

Jonas Service Tantec

Ask us a question

Standard VacuTEC 5050

This product is manufactured as a standard machine to match common production requirements. It offers a proven configuration with defined footprint, treatment concept and machine interface, making it easy to integrate into industrial production.

Customized VacuTEC 5050

This product can be customized to fit your production. Tantec can adapt the solution to your part geometry, process requirements and production flow, including footprint, cycle time, chamber size, part capacity and machine interface.

Find out before adhesion problems reach production

Tantec offers free sample evaluation and application testing performed by our experienced surface treatment experts. We test your materials under real-world process conditions to help determine the appropriate corona or atmospheric plasma solution for your specific application. Don’t guess at the treatment level your application needs. Let Tantec test your actual samples and provide data-driven recommendations for achieving strong, reliable, repeatable adhesion.

Submit your samples for a FREE evaluation today.

Cases

Molded containers inside a purple vacuum plasma discharge in the Printmasters case

Enhancing Quality and Sustainability with Tantec’s Surface Treatment Solutions

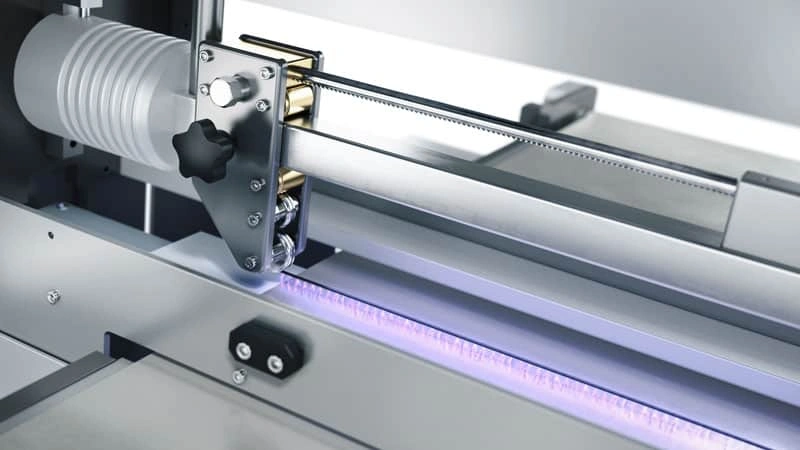

Surface treatment unit operating on a moving material strip in the Venture Automation case

Venture Automation optimizes end customers production with Tantec solution

Polypropylene medical implant components inside a vacuum plasma chamber

Plasma Treatment of Polypropylene Medical Implants by Tantec

VacuTEC 5050 technical specifications

FEATURES:
Easy to install and use	Connect to mains power.
Fast treatment times	High power impact enables treatment times from 5 – 600 seconds, depending on the material.
Vacuum level	The plasma discharge is active from 0,1 – 3 mbar depending on the application.
Process gas	Process gasses such as oxygen and argon can be used, but in most cases, it is not necessary.
Process control	The entire plasma process is controlled by the HV-X generator and the PLC unit. All parameters are displayed through the touch panel.
Cost-efficient surface treatment	Due to the low power consumption and no need for special treatment gasses the unit is a very cost-efficient solution for improving surface wettability and adhesion.
Vacuum pressure Plasma	Enables treatment of both conductive and non-conductive surfaces.
Chamber door	Hinged door with window and safety switch.

Technical Specifications	VacuTEC 5050 \| Vacuum Plasma Treater
Mains voltage and frequency	100-480 VAC 50/60 Hz
Output voltage/plasma power	5kV / 1000W
Power source	HV-X10 Generator
Compressed air inlet	6 bar dry & clean
Treatment gas	Standard: air, oxygen, argon, nitrogen on request
Vacuum pump capacity in m³/min.	100 m³/hour
Vacuum level	0,1–3 mbar
Evacuation time, typical	90 seconds
Plasma treatment time, typical	5 – 600 seconds, depending on the material
Control and connectivity	Complete with the Tantec touch panel.
Regulation compliance	CE – RoHS – WEEE
Dimensions	1115 x 955 x 1745 mm
Shelves	2
Tray size	500 x 500 mm

FAQ

What is VacuTEC 5050 used for?

VacuTEC 5050 is used for vacuum plasma treatment of components before coating, gluing, painting or printing

What product size can VacuTEC 5050 handle?

VacuTEC 5050 has two shelves, each with a tray size of 500 x 500 mm. This provides increased batch capacity while keeping the system well suited for production environments. Many parts and components can be adapted to fit the process and production needs.

How does VacuTEC 5050 improve adhesion?

The system builds a vacuum before generating plasma through integrated electrodes. This increases surface energy and improves wettability so downstream processes can bond more reliably.

How long does treatment take in VacuTEC 5050?

Treatment cycle times are often short, between 5 – 600 seconds depending on the material and its formulation.

Which vacuum level is used in VacuTEC 5050?

The plasma discharge is active from 0.1-3 mbar depending on the application. The low-pressure environment helps create a controlled and uniform plasma process.

What power supply does VacuTEC 5050 use?

VacuTEC 5050 uses an HV-X10 generator with 5 kV / 800 W output in the standard brochure configuration. A specially designed plasma transformer provides voltage to the plasma electrodes.

Can VacuTEC 5050 treat both conductive and non-conductive parts?

Yes. Vacuum plasma can treat both conductive and non-conductive surfaces, depending on the material, fixture and process setup.

When should you choose VacuTEC 5050?

VacuTEC 5050 is a suitable option when your process requires more capacity than a smaller chamber can provide, while a larger treatment volume such as VacuTEC 8080 or VacuTEC 100100 is not required. Tantec offers several VacuTEC variants, allowing the system size to be selected according to your parts, process and production needs.

Is VacuTEC 5050 an environmentally friendly solution?

Yes. VacuTEC 5050 is a dry process with low power consumption and often no need for special treatment gases. It can help reduce reliance on primers or chemical pre-treatment in suitable applications.

Can VacuTEC 5050 be customized?

Yes. Tantec can deliver standard VacuTEC machines or customize the chamber, shelves, electrodes, pump placement and automation around your production line and component requirements.
