LabelTEC

Corona Treatment of Narrow Web

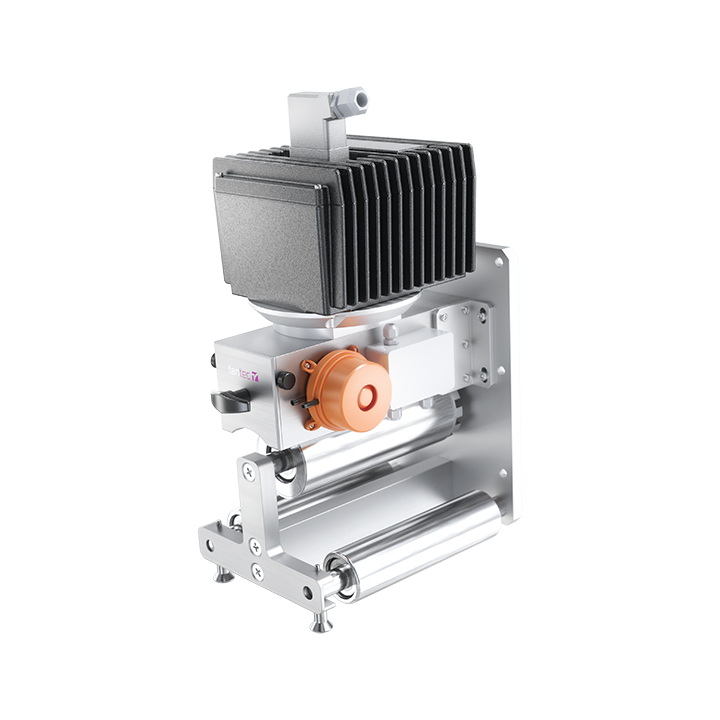

LabelTEC corona treatment 01

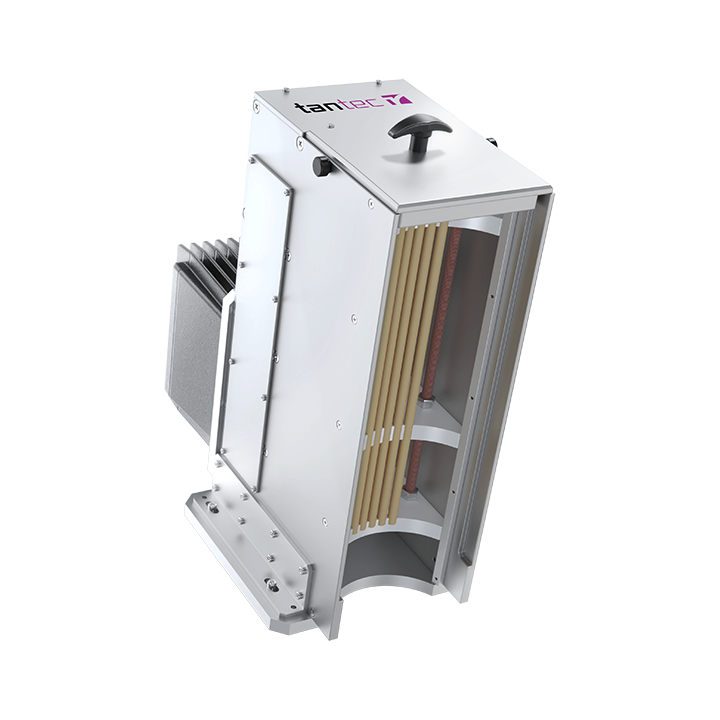

LabelTEC corona treatment 02

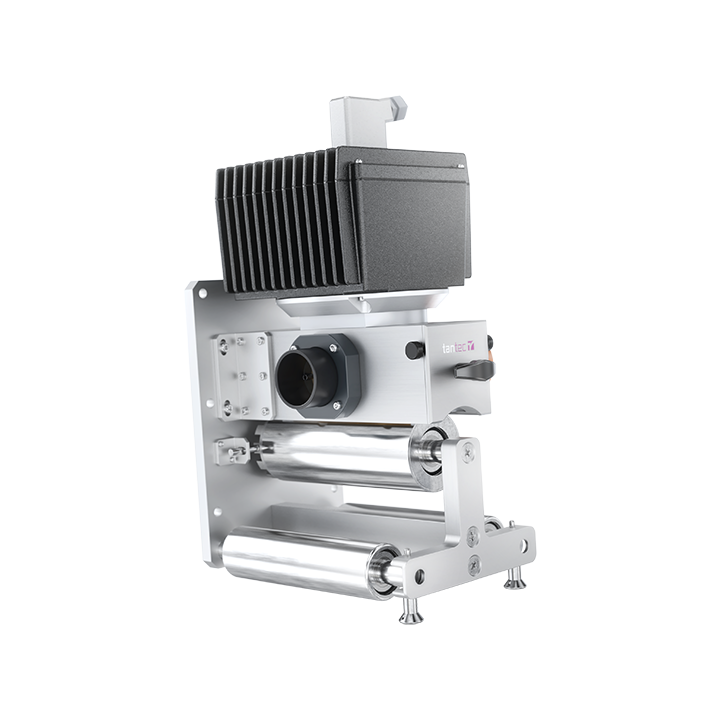

LabelTEC corona treatment 03

LabelTEC
Corona Treatment of Narrow Web

Request a quote

LabelTEC product description

The purpose of surface treatment of polymer-based materials is to increase surface wettability through electrical discharge.

The low surface energy of polymerbased substrates often leads to poor adhesion of inks, glues and coatings.

To obtain optimum adhesion, it is necessary to increase the surface energy of the substrate to just above that of the material to be applied.

Surface treatment with Corona results in improved surface adhesion properties.

LabelTEC is designed for the pretreatment of conductive and nonconductive narrow webs.

This type of system will treat either one or both sides of the web and will accommodate
widths from 100-500 mm, running at production speeds of up to 150 m/min.

Jonas Service Tantec

Ask us a question

Standard LabelTEC

This product is manufactured as a standard machine to match common production requirements. It offers a proven configuration with defined footprint, treatment concept and machine interface, making it easy to integrate into industrial production.

Customized LabelTEC

This product can be customized to fit your production. Tantec can adapt the solution to your part geometry, process requirements and production flow, including footprint, cycle time, chamber size, part capacity and machine interface.

Find out before adhesion problems reach production

Tantec offers free sample evaluation and application testing performed by our experienced surface treatment experts. We test your materials under real-world process conditions to help determine the appropriate corona or atmospheric plasma solution for your specific application. Don’t guess at the treatment level your application needs. Let Tantec test your actual samples and provide data-driven recommendations for achieving strong, reliable, repeatable adhesion.

Submit your samples for a FREE evaluation today.

Cases

LabelTEC

Innovative surface treatment solutions for the flexible electronics of the future

LabelTEC technical specifications

Technical Specifications:	LabelTEC
Mains voltage and frequency	230 VAC 50/60 Hz
Output voltage/power	Choose from 200W / 1000W / 2000W
Output frequency	Up to 30 kHz
Mains cable	Supplied with connector
Control interface	Connector supplied
Operator display	HMI remote
Treatment width, mm	From 100 – 500 mm
Side for treatment	1 or 2 sides
Speeds	Up to 150 m/min.
Electrodes	Ceramic

FAQ

What is LabelTEC used for?

LabelTEC is used for corona treatment of conductive and non-conductive narrow webs before printing, coating, gluing or laminating.

Why is surface treatment needed on narrow web materials?

Many polymer-based substrates have low surface energy, which can make it difficult for inks, glues and coatings to bond properly.

How does LabelTEC improve adhesion?

LabelTEC increases the surface wettability of the substrate, creating better conditions for reliable adhesion of inks, glues and coatings.

Can LabelTEC treat both sides of the web?

Yes. LabelTEC can be configured for treatment of one or both sides of the web, depending on the production setup.

How fast can LabelTEC run?

LabelTEC can run at production speeds of up to 150 m/min, depending on the material and process requirements

What type of electrodes does LabelTEC use?

LabelTEC uses ceramic electrodes for controlled and reliable corona treatment.

Is LabelTEC an environmentally friendly solution?

Yes. Corona treatment is a dry electrical process that can reduce the need for chemical primers or additional pre-treatment where the application allows it.

Is LabelTEC available as a standard or customized solution?

Yes. LabelTEC can be configured to match your narrow web material, treatment width, line speed, power requirement and whether one or both sides need treatment.
