SpinTEC30
The most compact rotary plasma system
SpinTEC30
The most compact rotary plasma system

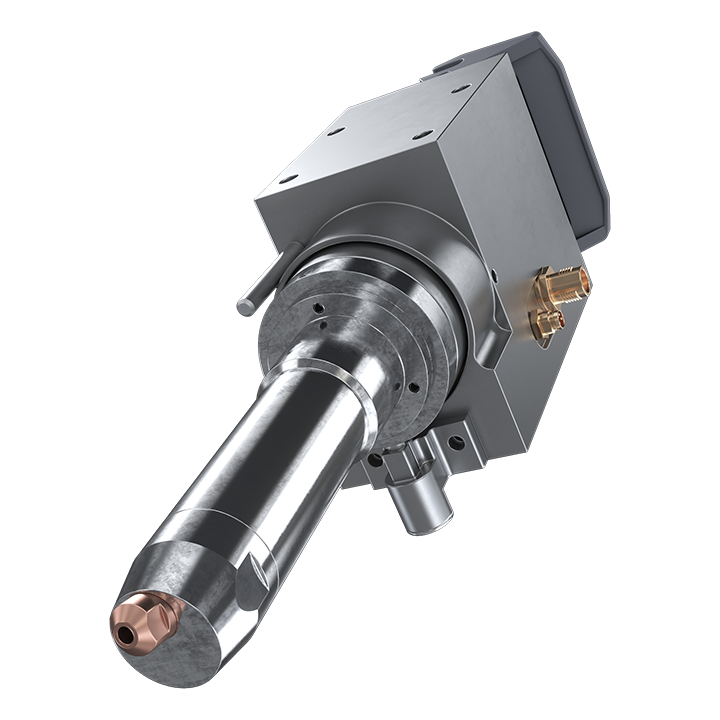

SpinTEC30 product description
Experience the perfect blend of precision, efficiency, and versatility with the new treatment solution. Tantec’s excited to present our SpinTEC30, an innovative treatment solution engineered for accuracy and effectiveness.
Tantec’s innovative SpinTEC30 plasma system offers a treatment width of 30 mm.
With a working speed of approximately 25 m/min, this system is built for productivity. The adjustable rotating speed, ranging from 70 to 2800 RPM/min, allows for customization based on your specific needs.
The direct brushless engine ensures reliable performance and longevity. The use of ceramic ball bearings contributes to the durability and efficiency of the system. The system has been designed with minimalism in mind, featuring only a few wearing parts. This not only reduces the need for frequent replacements but also contributes to the overall durability of the system.
Despite its compact size, it does not compromise on performance. One of the key advantages of the SpinTEC30 system is how light it is. This makes it possible to use on lightweight robots, expanding its range of applications.
Our direct engine design eliminates the need for a belt, resulting in less maintenance. This a significant advancement, as Tantec is the only ones in the market with systems that no longer depend on unreliable belts.
The system is designed to be service-friendly. Most of the maintenance can be done by the customers themselves.
In summary, Tantec’s new treatment solution offers a unique combination of compactness, lightweight design, durability, low maintenance, and cutting-edge technology.
Standard SpinTEC30
This product is manufactured as a standard machine to match common production requirements. It offers a proven configuration with defined footprint, treatment concept and machine interface, making it easy to integrate into industrial production.
Customized SpinTEC30
This product can be customized to fit your production. Tantec can adapt the solution to your part geometry, process requirements and production flow, including footprint, cycle time, chamber size, part capacity and machine interface.
Find out before adhesion problems reach production
Tantec offers free sample evaluation and application testing performed by our experienced surface treatment experts. We test your materials under real-world process conditions to help determine the appropriate corona or atmospheric plasma solution for your specific application. Don't guess at the treatment level your application needs. Let Tantec test your actual samples and provide data-driven recommendations for achieving strong, reliable, repeatable adhesion.
SpinTEC30 technical specifications
| FEATURES: | |
| Easy to use | The system must be connected to mains power and compressed air, no adjustment of air or power is necessary. |
| Potential free discharge | Allows treatment of both conductive, non-conductive as well as semi-conductive surfaces. |
| High speed treatment | High power impact enables treatment times up to 25 m/min., depending on material’s treatability. |
| Process control | A large number of various signals are available on a digital interface to control and monitor the Plasma discharge at all times. |
| Automatic discharge air regulation | No matter the length of the power/air cable, the generator will adjust automatically to ensure the correct air pressure and flow. |
| Compact and Lightweight | Compact and lightweight makes the SpinTEC30 easy to integrate in almost any production line or robot cell. |
| Standby air flow | The air flow is controlled electronically which allows for switching the on/off feature. A minor flow of air is part of stand-by, to avoid dust being attracted to the discharge nozzle. |
FAQ
What is SpinTEC30 used for?
SpinTEC30 is used for precise rotary plasma treatment where a compact and lightweight treatment head is required. It treats a 30 mm width and is especially relevant for robotic applications and production setup.
What makes SpinTEC30 different from a standard plasma nozzle?
SpinTEC30 uses a rotating plasma head with a treatment width of 30 mm. This creates a wider and more uniform treatment area.
How wide is the treatment area?
SpinTEC30 provides a treatment width of 30 mm. This makes it suitable for applications where a narrow but consistent treatment band is required before bonding, printing or coating.

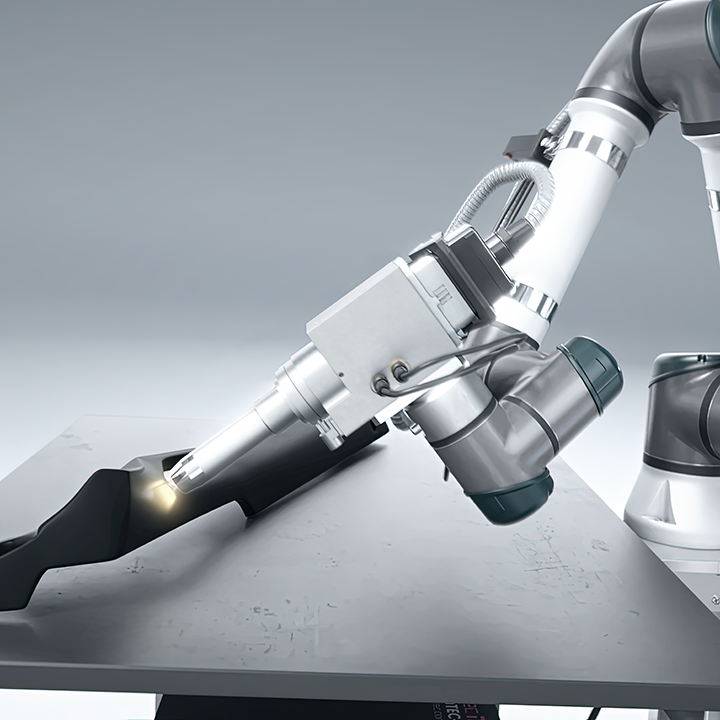

Can SpinTEC30 be used on lightweight robots?
Yes. SpinTEC30 is one of the most compact and lightweight systems on the market, making it practical for lightweight robots and flexible automation cells.
How fast can SpinTEC30 treat surfaces?
SpinTEC30 is designed for productive treatment speeds, with working speeds up to approximately 25 m/min depending on the material and application. The final process speed should always be validated with your part.
Why is adjustable rotation speed useful?
The rotating speed can be adjusted to match the material, surface shape and required treatment level. This helps create a more controlled result across different applications.
How does SpinTEC30 reduce maintenance?
SpinTEC30 uses a direct brushless engine and avoids belt-driven rotation. Fewer wearing parts help reduce maintenance and support reliable operation in production.
Can SpinTEC30 treat conductive and non-conductive surfaces?
Yes. The potential-free discharge allows treatment of conductive, non-conductive and semi-conductive surfaces, depending on the specific application and setup.
Is SpinTEC30 an environmentally friendly solution?
Yes. SpinTEC30 is a dry plasma process that can improve adhesion without chemical primers or wet pre-treatment in many applications. It also supports precise local treatment, so energy is focused where the surface activation is required.
Can SpinTEC30 be adapted to your automation setup?
Yes. SpinTEC30 can be integrated into robotic cells, production lines or special-purpose equipment. The treatment parameters and mechanical integration can be adapted to your part, robot and process requirements.
